Position Estimation & Behavior Measurement Logger

LoggLaw C Series

Name: LoggLaw C Series
Brand: LoggLaw

Ultra-compact geolocator — also referred to in the biologging field as an archival tag or data storage tag (DST). Choose from C7, C8, C7XI, and C7XIR models tailored to your research objectives and target species. Models with accelerometer and geomagnetic sensors available. Ideal for marine and avian behavioral research.

This series belongs to the category of devices commonly known in biologging research as an archival tag, data storage tag (DST), or simply a data logger — recorders that store sensor data internally and are retrieved later to download the data. The LoggLaw C series is one of the leading Japan-developed product lines in this category.

Detailed specifications for all models in a downloadable PDF catalogC Series Catalog (PDF)

Key Features

Ultra-Compact & Lightweight

At just a few grams, it can be attached to small birds and fish without hindering natural behavior.

Deep-Sea Rated

Robust design withstanding up to 2,000m water pressure. Suitable for deep-sea research.

Rechargeable Models

Rechargeable battery models available for repeated use. Ideal for long-term projects.

Diverse Sensors

Choose from accelerometer, geomagnetic, temperature, and depth sensors based on your research needs.

Waterproof Design

Fully waterproof design enables long-term use in marine environments with corrosion-resistant construction.

High-Capacity Memory

Up to 512MB of flash memory for extended data recording.

Series Comparison

Compare the concepts of C7, C8, and C7XI at a glance

	LoggLaw C7	LoggLaw C8	LoggLaw C7XI / C7XIR
Positioning	Lightweight, high-resolution model	High-pressure model for deep-water species	High-resolution model with behavioral analysis
Target Animals	Seabirds, sea turtles, and small-to-medium fish — species where attachment weight is the primary constraint	Deep-diving fish such as tuna, large odontocetes, and deep-diving pinnipeds — species inhabiting deep waters	Migratory fish such as yellowfin tuna and skipjack, seabirds, penguins, sea turtles, and pinnipeds — species where behavioral data is needed
Depth Rating	1,000 m	2,000 m	1,000 m
Depth Sensor Range	~600 m	~1,400 m	~600 m
Depth Resolution	≤ 1 cm	0.05% FS (~70 cm @ 1,400m)	≤ 1 cm
Onboard Sensors	Depth / Int. Temp / Ext. Temp / Light	Depth / Int. Temp / Ext. Temp / Light / Salinity	Depth / Int. Temp / Ext. Temp / Light / Salinity / 3-axis Accel / 3-axis Geomag
Stalk (Ext. Temp / Light)	Optional	Optional	Optional (not supported on C7XIR)
Accel / Geomag	—	—	Yes (for behavioral analysis)
Weight Range	2.9–4.8 g	3.5–13.0 g	4.4–7.0 g
Memory	8 MB	8–128 MB	512 MB
Rechargeable Model	—	—	C7XIR available

Each model's standout strengths

View C7-250 vs C7XI detailed comparison

LoggLaw C7

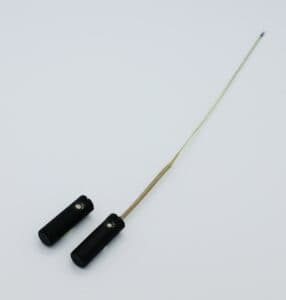

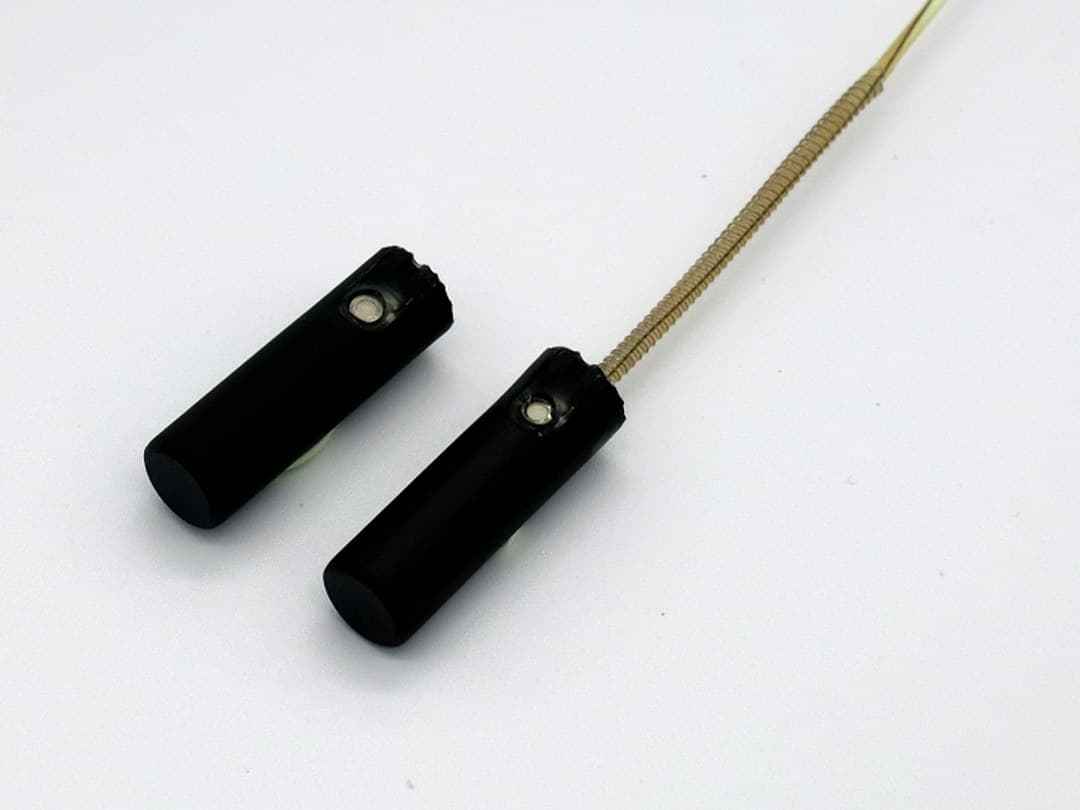

The LoggLaw C7 records depth, temperature, and light intensity. Equipped with a high-precision clock (max ±95 seconds/year with automatic temperature compensation) for more accurate geolocation. The stalk (housing the external temperature / light sensor) — including its length, presence, and battery size — can be flexibly customized.

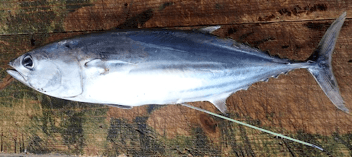

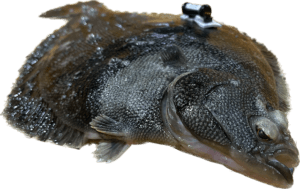

Gallery

View actual product images and usage photos.

* Product images may differ from the actual product. Specifications are subject to change without notice for improvement purposes.

Specifications

Detailed Technical Specifications

Basic Specifications

	LoggLaw C7-100	LoggLaw C7-250
Weight in Air	2.9g	4.8g
Dimensions	φ8 x 26 mm	φ9 x 32 mm
Depth Rating	1,000m
Memory	8MB
Sensor Options	Depth / Int. Temp / Ext. Temp / Light
Stalk (Ext. Temp / Light sensor)	Optional
Interval Settings	1/5/15/30/60/120/300/600s
Time Accuracy	±95 s/yr
Battery Life[1]	12 months	24 months

Depth Sensor

	LoggLaw C7-100	LoggLaw C7-250
Measurable Depth	~600m
Accuracy (temp range: 0–40°C)	≤±1% (depth 0–600m)
Resolution	≤1cm

Temperature Sensor

	LoggLaw C7-100	LoggLaw C7-250
Measurement Range	-5 to 35°C
Accuracy	±0.2°C
Resolution	≤0.05°C

[1] Pressure, internal temperature, external temperature, light intensity (60-second interval)

* Specifications are subject to change without notice for improvement purposes.

LoggLaw C8

The LoggLaw C8 records depth, temperature, light intensity, and salinity. It measures depths down to 1,400m (housing rated to 2,000m), extending into deeper waters beyond the reach of the C7 (rated to 1,000m). Standard models (C8-100 / C8-150) provide up to 24 months of measurement with 8MB memory, while the high-capacity C8X variants (C8X-250 / C8X-500) feature 128MB memory and support high-resolution sampling at 5-second intervals. The stalk (housing the external temperature / light sensor) is optional.

Specifications

Detailed Technical Specifications

Basic Specifications

	LoggLaw C8-100	LoggLaw C8-150	LoggLaw C8X-250	LoggLaw C8X-500
Weight in Air	3.5g	4.8g	6.0g	13.0g
Dimensions	8.5 x 26 mm²	φ9 x 32 mm	11 x 38 mm	13 x 44 mm
Depth Rating	2,000m
Memory	8MB	8MB	128MB	128MB
Sensor Options	Depth / Int. Temp / Ext. Temp / Light / Salinity
Stalk (Ext. Temp / Light sensor)	Optional
Interval Settings	1/5/15/30/60/120/300/600s
Time Accuracy	±95 s/yr
Battery Life	12 mo.*1	24 mo.*2	12 mo.*3	12 mo.*4

Depth Sensor

	LoggLaw C8-100	LoggLaw C8-150	LoggLaw C8X-250	LoggLaw C8X-500
Measurable Depth	~1,400m
Accuracy (depth 0–1,000m)	±1% FS
Resolution	0.05%

Temperature Sensor

	LoggLaw C8-100	LoggLaw C8-150	LoggLaw C8X-250	LoggLaw C8X-500
Measurement Range	-5 to 35°C
Accuracy	±0.2°C
Resolution	0.05°C

*1: Depth, int. temp., ext. temp., light at 60-sec interval

*2: Depth, int. temp., ext. temp., light at 10-sec interval

*3: Depth, int. temp., ext. temp., light at 5-sec interval

*4: Depth, int. temp., ext. temp., light at 10-sec interval

* Specifications are subject to change without notice for improvement purposes.

LoggLaw C7XI / C7XIR

The LoggLaw C7XI adds a 3-axis accelerometer and a 3-axis geomagnetic sensor to the depth, temperature, light, and salinity sensors shared across the C-series. Its 512MB memory supports up to 18 months of measurement in Duty Cycle mode, or continuous acceleration sampling at up to 64Hz — enabling analysis of activity levels, tail-beat frequency, and fine-grained behaviors such as feeding and spawning. The stalk (housing the external temperature / light sensor) is optional.

LoggLaw C7XIR

The LoggLaw C7XIR is a rechargeable variant of the C7XI, suited to repeated deployments and projects that involve pre-charge workflows. Note: C7XIR does not support a stalk, so external temperature and light cannot be recorded.

Specifications

Detailed Technical Specifications

Basic Specifications

	C7XI-9D38	C7XI-9D44	C7XIR-9D44
Weight in Air	6.0g (with stalk)	7.0g (with stalk)	4.4g (without stalk)
Dimensions	9 x 38 mm	9 x 44 mm	9 x 44 mm
Depth Rating	1,000m
Memory	512MB
Rechargeable Battery	—	—	Yes
Sensor Options	Depth / Int. Temp / Ext. Temp / Light / Salinity / 3-axis Accel / 3-axis Geomag	Depth / Int. Temp / Ext. Temp / Light / Salinity / 3-axis Accel / 3-axis Geomag	Depth / Int. Temp / Salinity / 3-axis Accel / 3-axis Geomag
Stalk (Ext. Temp / Light sensor)	Optional	Optional	—
Time Accuracy	±95 s/yr

Depth Sensor

	C7XI-9D38	C7XI-9D44	C7XIR-9D44
Measurable Depth	~600m
Accuracy (temp range: 0–40°C)	≤±1% (depth 0–600m)
Resolution	≤1cm

Temperature Sensor

	C7XI-9D38	C7XI-9D44	C7XIR-9D44
Measurement Range	-5 to 35°C
Accuracy	±0.2°C
Resolution	≤0.05°C

Acceleration Sensor

	C7XI-9D38	C7XI-9D44	C7XIR-9D44
Sampling Frequency	4, 8, 16, 32, 64 Hz
Measurable Range	±8 g

Geomagnetic Sensor

	C7XI-9D38	C7XI-9D44	C7XIR-9D44
Sampling Frequency	1, 2, 4, 16 Hz
Measurable Range	±1200μT

Interval Settings

	C7XI-9D38	C7XI-9D44	C7XIR-9D44
Duty Cycle Mode	Temp/Light/Salinity: 60s Depth/Geomag: 1/2/4/8/16Hz Accel: 8/16/32/64Hz
Continuous Mode	Temp/Light/Salinity: 1/2s Depth/Geomag: 0.5/1/16Hz Accel: 8/16/32/64Hz
Battery Life (Duty Cycle)[*1]	12 months	18 months	4.5 months
Battery Life (Continuous)[*2]	3 weeks	2 months	2 weeks

*1: Accelerometer (16Hz) and geomagnetic (1Hz) measured for 5 seconds at 60-sec intervals, pressure/int. temp./ext. temp./light (60-sec interval)

*2: Depth/geomagnetic at 1Hz, accelerometer at 16Hz interval

* Specifications are subject to change without notice for improvement purposes.

Sampling Pattern

Default Configuration (C7XI-9D44)

Simultaneous 6-channel recording with duty cycle ON 5s / OFF 55s

5-minute view — duty cycle repeats every 60sHighlighted cycle expanded below

Repeating cycle

5 cycles × 60s = 5 min

01 min2 min3 min4 min5 min

↓ Zoom into 1 cycle (60s)

Duty cycle

ON 5s / OFF 55s

OFF (55s)

Depth

1 Hz × 5s = 5 pts/min

Internal temperature

1 / 60s

60 s

External temperature

1 / 60s

Light

1 / 60s

Accelerometry (3-axis)

16 Hz × 5s × 3 axes ≈ 240 pts/min

Continuous 5s burstRaw data preserved → behavioural / FFT / activity analysis

Magnetometry (3-axis)

1 Hz × 5s = 5 pts/min

05102030405060

Time within one cycle (seconds)

ON window (0–5s)1 Hz sample16 Hz × 3 axes1 / 60s

This is the default configuration of C7XI-9D44. Duty cycle, sampling frequencies, and sensor combinations can be selected from a range of preset options to suit your research needs.
